Integrating DMN and Business Process on Red Hat Process Automation Manager

DMN stands for Decision Model and Notation. According to Wikipedia it is a standard approach for describing and modeling repeatable decisions within organizations to ensure that decision models are interchangeable across organizations. It is another approach of creating a “decision” on RHPAM (Red Hat Process Automation Manager), other than Decision Table and DRL.

On RHPAM, DMN file can be deployed as a standalone dpeloyment, or as an embedded within a Business Process. On this writing, im trying to do both and we’ll see what are the benefit and weakness of each approach.

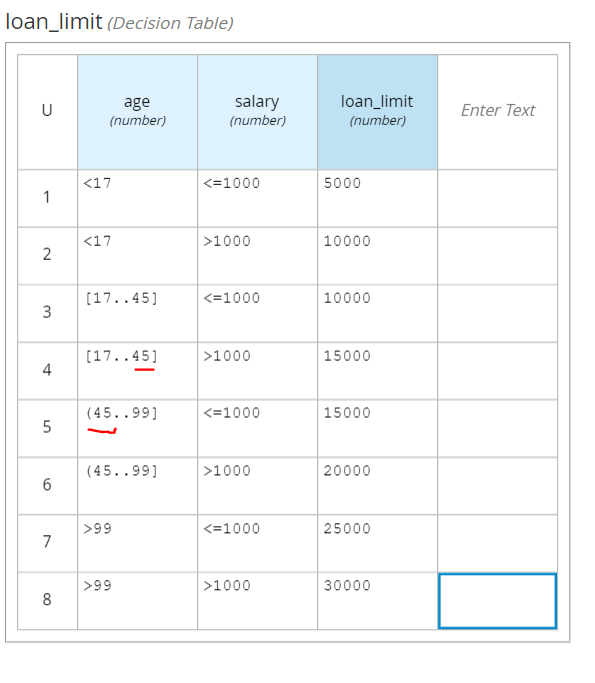

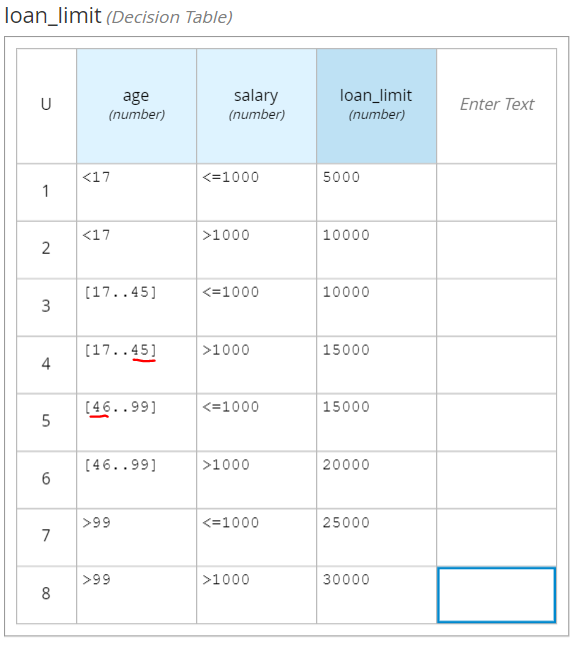

Lets try to create a simple DMN to calculate how much loan should one get based on his age and salary. Create “age” and “salary” as DMN Input Data, and two DMN Decisions. “Loan_limit” with Decision Table, and “result” with Context.

Save, Build and Deploy, and we can test it by using rest api. But first we need to check on DMN Namespace and Model Name which is highlighted on the first screenshot and then put is as json parameter.

curl -L -X POST 'http://localhost:8080/kie-server/services/rest/server/containers/loan_validation_1.0.0-SNAPSHOT/dmn' \
-H 'Authorization: Basic cGFtQWRtaW46cGFzc3dvcmQ=' \
-H 'Content-Type: application/json' \
--data-raw '{
  "model-namespace":"https://kiegroup.org/dmn/_43FF885A-C2FB-49A4-BFB4-0F007A2C1C4F",
  "model-name":"Validation",
  "dmn-context": {
    "age":50,
    "salary":1200
  }
}'

The next step is put this DMN into a workflow. We can start by crating a simple workflow, dont forget to add DMN Namespace and Model Name on Business Rule Task.

And run this curl ommand to create a new instance,

curl -L -X POST 'http://localhost:8080/kie-server/services/rest/server/containers/loan_validation_1.0.0-SNAPSHOT/processes/loan_workflow/instances/' \
-H 'Authorization: Basic cGFtQWRtaW46cGFzc3dvcmQ=' \
-H 'Content-Type: application/json' \
--data-raw '{
    "age":50,
    "salary":1200
}'

And we can see the result on log,

12:58:08,486 INFO  [stdout] (default task-17) ================
12:58:08,486 INFO  [stdout] (default task-17) you are eligible for 20000
12:58:08,486 INFO  [stdout] (default task-17) ================

Code sample can be downloaded on below github repository,

https://github.com/edwin/rhpam-loan-validation-sample-with-dmn
Google+

A Simple RHPAM-Application Integration with Multi User Approval Workflow

On this article, im trying to create a simple Leave Approval System which is deployed as microservices. So basically there are two different application, one Golang app as Frontend, and RHPAM (Red Hat Process Automation Manager) as Backend, and both are communicating by using a simple REST API.

Basically there are two users involved here, one is adminUser as requester, and spv02 as approver. As approver, spv02 can either accept or reject the requested leave. Easiest way to described the approval workflow is perhaps described in below image,

Lets start by creating two user on RHPAM,

adminUser / password
spv02 / password

Import project from github (code is at the end of this article), build and deployed it to KIE.

Now lets start with creating an entry form,

The touch-point between frontend and pam on this ui is RHPAM’s “process instances” API, and im adding a correlation-key which is a unique business primary key.

curl -L -X POST 'http://localhost:8080/kie-server/services/rest/server/containers/approval_system_1.0.1-SNAPSHOT/processes/approval/instances/correlation/TL-3422' \
-H 'Authorization: Basic YWRtaW5Vc2VyOnBhc3N3b3Jk' \
-H 'Content-Type: application/json' \
--data-raw '{
    "application": {
        "com.myspace.approval_system.Request": {
            "days": 9,
            "purpose":"Sick Leave"
        }
    }
}'

Next step is displaying all leave request that have been made by this corresponding user, we can capture this by using server queries API, given a specific username as initiator parameter,

curl -L -X GET 'http://localhost:8080/kie-server/services/rest/server/queries/processes/instances?initiator=adminUser&page=0&pageSize=10&sortOrder=true&status=1&status=2&status=3' \
-H 'Accept: application/json' \
-H 'Authorization: Basic YWRtaW5Vc2VyOnBhc3N3b3Jk'

Moving forward, now we are seeing from approval’s point of view, first we need to display what are the tasks which are assign to this user.

curl -L -X GET 'http://localhost:8080/kie-server/services/rest/server/queries/tasks/instances/owners?page=0&pageSize=10&sortOrder=true&sort=taskId' \
-H 'Accept: application/json' \
-H 'Authorization: Basic c3B2MDI6cGFzc3dvcmQ='

And the ability to Approve or Reject a specific request, there are two APIs which are involved here. That is one API for starting the task, and another one to complete it. Make sure you differentiate parameters on “approved” field, use “false” for Rejecting request, and “true” for Accepting request.

curl -L -X PUT 'http://localhost:8080/kie-server/services/rest/server/containers/approval_system_1.0.1-SNAPSHOT/tasks/6/states/started' \
-H 'Authorization: Basic c3B2MDI6cGFzc3dvcmQ='
curl -L -X PUT 'http://localhost:8080/kie-server/services/rest/server/containers/approval_system_1.0.1-SNAPSHOT/tasks/6/states/completed' \
-H 'Authorization: Basic c3B2MDI6cGFzc3dvcmQ=' \
-H 'Content-Type: application/json' \
--data-raw '{
    "approved": false
}'

And here are my repositories on Github,

frontend :
https://github.com/edwin/frontend-for-approval-rhpam

backend :
https://github.com/edwin/rhpam-simple-approval-concept

Have fun playing with RHPAM :)

Google+

Reusing Your Workflow and Assets on Red Hat Process Automation Manager

Sometimes you want to reuse the assets which you are already creating, and “import” it on multiple other projects. We can use that on RHPAM (or its opensource version, which is jBPM) because the output of it is actually a kjar (knowledge jar) file, which is just a jar library where you can import it by using a simple maven.

For this example im creating two different project, Project 01 and Project 02. Where Project 01 have a workflow that will import a Decision Table which is created on Project 02. It is basically a simple calculator to measure how wealthy someone is, based on one’s salary.

Lets start with Project02 first, and as always we start with a simple Java bean

And a Decision Table,

We will use that decision table in a very simple workflow,

Next is the unique part, where we need to create a KIE base for Project02

And a KIE session,

“Default” option should be un-check for KIE bases and KIE session on Project02.

The last step for Project02 is to build, and install it.


Next is how to import Project02 into Project01. First thing that we need to do is to import Project02 on Project01’s dependency.

Create a workflow, and put a “Reusable Sub-Process” referring to our Project02 workflow.

And finally, create a KIE base for Project01

and a KIE session,

Make sure you check “Default” option for KIE bases and KIE session on Project01.

Build, Install and Deploy Project01 to KIE server, and we can test by using a simple CURL REST API command or by using Postman

For complete code, can be accessed here.

https://github.com/edwin/Project01

https://github.com/edwin/Project02
Google+

Creating a Rest API Call with WorkItemHandler on Red Hat Process Automation Manager

Usually we are using tasks for showing steps of process on top of Red Hat Process Automation Manager (RHPAM). But most of the time we need a customized task involved, thats where WorkItemHandler comes in handy.
For this demo, im trying to create a simple WorkItemHandler to create a custom task on top of RHPAM which is getting some response from a third party api provider.

So here is pretty much the raw concept,

As usual, for beginning we need to create a pom xml file, and it is important to put “scope” variable as provided.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.edw</groupId>
    <artifactId>AnimeWorkItemHandler</artifactId>
    <version>1.0.4</version>
    <description>a simple rest api to be used within RHPAM</description>
    <packaging>jar</packaging>


    <properties>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
    </properties>

    <distributionManagement>
        <repository>
            <id>repo-custom</id>
            <url>http://nexus:8081/repository/pam/</url>
        </repository>
        <snapshotRepository>
            <id>repo-custom</id>
            <url>http://nexus:8081/repository/pam/</url>
        </snapshotRepository>
    </distributionManagement>

    <dependencies>
        <dependency>
            <groupId>org.jbpm</groupId>
            <artifactId>jbpm-flow</artifactId>
            <version>7.38.0.Final</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-core-asl</artifactId>
            <version>1.9.9</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-mapper-asl</artifactId>
            <version>1.9.9</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-xc</artifactId>
            <version>1.9.9</version>
            <scope>provided</scope>
        </dependency>

    </dependencies>
</project>

and simple java class to do a simple REST Api call,

package com.edw;

import java.io.BufferedReader;
import java.io.InputStreamReader;
import java.net.URL;
import java.net.URLConnection;
import java.util.HashMap;
import java.util.List;

import org.codehaus.jackson.map.ObjectMapper;
import org.drools.core.process.instance.WorkItemHandler;
import org.kie.api.runtime.process.WorkItem;
import org.kie.api.runtime.process.WorkItemManager;

public class AnimeWorkItemHandler implements WorkItemHandler {
    public void abortWorkItem(WorkItem wi, WorkItemManager wim) {
        wim.abortWorkItem(wi.getId());
    }

    // will try fire to https://jikan.moe/ api
    public void executeWorkItem(WorkItem wi, WorkItemManager wim) {
        String name = (String) wi.getParameter("name");

        String nameResponse = "";
        String imageUrl = "";

        try {
            // api endpoint = https://api.jikan.moe/v3/search/character?q=???&limit=1
            URL url = new URL(String.format("https://api.jikan.moe/v3/search/character?q=%s&limit=1", name));

            URLConnection urlConnection = url.openConnection();
            BufferedReader in = new BufferedReader(
                    new InputStreamReader(
                            urlConnection.getInputStream()));
            String inputLine;
            StringBuffer stringBuffer = new StringBuffer();
            while ((inputLine = in.readLine()) != null) {
                stringBuffer.append(inputLine);
            }

            ObjectMapper objectMapper = new ObjectMapper();
            HashMap jsonResult = objectMapper.readValue(stringBuffer.toString(), HashMap.class);
            List<HashMap> results = (List<HashMap>) jsonResult.get("results");

            nameResponse = (String) results.get(0).get("name");
            imageUrl = (String) results.get(0).get("image_url");

            in.close();
        } catch (Exception e) {
            e.printStackTrace();
        }

        HashMap result = new HashMap();
        result.put("nameResponse", nameResponse);
        result.put("imageUrl", imageUrl);
        wim.completeWorkItem(wi.getId(), result);
    }
}

Once created, we need to build it by using an mvn command

mvn clean package

After jar has been build, next step is to upload that jar thru your Business Central,

If uploading success, we can see the uploaded jar file within our Nexus

Next is lets go to RHPAM dashboard, and create a work item definition

And put this values, make sure that the content of “parameters” and “result” is the same as on your java class, which in my case is “name”, “nameResponse” and “imageUrl”.

[
  [
    "name" : "AnimeWorkItemHandler",
    "parameters" : [
        "name" : new StringDataType()
    ],
    "results" : [
        "nameResponse" : new StringDataType(),
        "imageUrl" : new StringDataType()
    ],
    "displayName" : "AnimeWorkItemHandler",
    "icon" : ""
  ]
]

The next step, and pehaps the most important is, include our newly created jar file into RHPAM project. We can do so by going thru “Settings” tab, and create a new Work Item Handlers,

And import the library and dependency needed

The last is adding our new WorkItemHandler to our existing workflow,

So as you can see, it’s not that difficult to create a custom task on RHPAM. And for the full code for this project can be accessed on my github page,

https://github.com/edwin/anime-work-item-handler
Google+

How to Create and Test Workflow on Red Hat Process Automation Manager with REST API

Red Hat Process Automation Manager, or RHPAM, is a platform that are being use for automating business decisions and processes. It enables enterprise business and IT users to document, simulate, manage, automate and monitor business processes and decisions.

And for today’s example im trying to simulate a logic to validate a very simple condition, to check whether a user registration data is valid or not. The parameter is, a user should have a valid name, and age between 21 and 49.

First we need to create a simple Data Object to accomodate our parameter data and result,

Next is creating a simple decision table,

Put data constraint there,

Create expected result,

After adding some decision logic, the end result should be like this,

Next is creating a workflow (Business Processes), in here we are doing some data unmarshalling, logging, validating the data with our existing data table, and providing the result. The result of this workflow is going to be stored in a “status” variable.

The whole project structure will looks like this,

Next, we can do build, and deploy after that. This will make our project deployed to Kie Server.

Now here comes the exciting part, how to access and test our deployed pam project thru REST API. First we need to understand that our project is being deployed to a Kie Server, therefore we need to see what api services that are provided there. We can check easily by seeing our Kie Server’s swagger link,

https://kieserver-url/docs/

We can list all projects available on our Kie Server with this curl command, dont forget replacing pamuser and pampassword with your actual RHPAM username and password

curl -kv https://pamuser:pampassword@kieserver-url/services/rest/server/containers/

Use this curl command to see the api endpoint for our business process workflow,

curl -kv https://pamuser:pampassword@kieserver-url/services/rest/server/containers/Project01_1.0.0-SNAPSHOT/processes

Once we found our business process id, we can start our workflow by using this curl command,

curl -kv https://pamuser:pampassword@kieserver-url/services/rest/server/containers/Project01_1.0.0-SNAPSHOT/processes/Project01.Business01/instances \
-H 'Content-Type: application/json' \
--data-raw '{
    "application": {
        "com.edw.project01.User": {
            "age": 2,
            "name":"edwin",
            "failed":null,
            "success":null
        }
    }
}'

This curl command will return a specific numerical id,

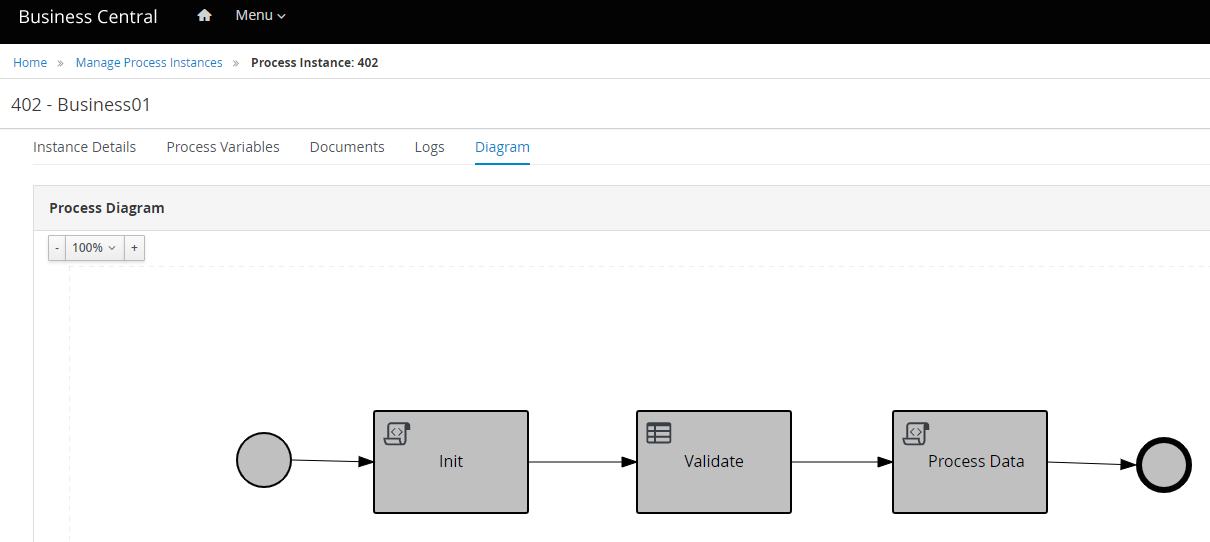

We can see the progress result of corresponding id on “Process Instances” menu,

Or by using a curl api call,

curl -kv https://pamuser:pampassword@kieserver-url/services/rest/server/containers/Project01_1.0.0-SNAPSHOT/processes/instances/12

Next is seeing what is the workflow result, by seeing that we are giving “age” parameter below 20 means we are expeting the registration result to be “false”. We can achieve that by using this curl command,

curl -kv https://pamuser:pampassword@kieserver-url/services/rest/server/containers/Project01_1.0.0-SNAPSHOT/processes/instances/12/variables/instances/status

And it is showing that value is “false”,

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<variable-instance-list>
    <variable-instance>
        <name>status</name>
        <old-value></old-value>
        <value>false</value>
        <process-instance-id>12</process-instance-id>
        <modification-date>2020-05-29T16:37:14.382Z</modification-date>
    </variable-instance>
</variable-instance-list>

Lets try with a correct data,

curl -kv https://pamuser:pampassword@kieserver-url/services/rest/server/containers/Project01_1.0.0-SNAPSHOT/processes/Project01.Business01/instances \
-H 'Content-Type: application/json' \
--data-raw '{
    "application": {
        "com.edw.project01.User": {
            "age": 25,
            "name":"edwin",
            "failed":null,
            "success":null
        }
    }
}'

This time it will shows “true”

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<variable-instance-list>
    <variable-instance>
        <name>status</name>
        <old-value></old-value>
        <value>true</value>
        <process-instance-id>13</process-instance-id>
        <modification-date>2020-05-29T16:58:26.244Z</modification-date>
    </variable-instance>
</variable-instance-list>

You can check my sample code on github,

https://github.com/edwin/rhpam-hello-world-example

So, it’s pretty much simple right.
Have fun with RHPAM (Y)

Google+
