netbeans Posts

Weird Netbeans Error : java.lang.OutOfMemoryError: PermGen space

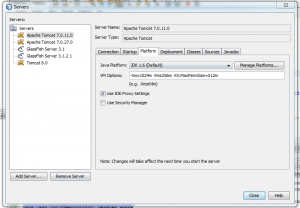

I found this error when deploying my Netbeans application directly to Apache Tomcat, i think it happen because of lack of memory needed to deploy it. I resolve it by adding these on server’s vm options

-Xmx1024m -Xms256m -XX:MaxPermSize=512m

Hope it helped others :)

Google+

[Weird Error] Received fatal alert: bad_record_mac When Using Netbeans Subversion

I had a very weird error when syncronizing with Netbeans to my Subversion server, using https connection type.

org.apache.subversion.javahl.ClientException: E175002: Received fatal alert: bad_record_mac

After spending some time to googling, i found out that the culprit is Netbeans’ SvnKit. Changing it to CLI removes the error, and my Netbeans is running well again :D.

Google+

How to Fix Netbeans’ GroupLayout Incompatibility with Java 5.0 (and Less)

Netbeans has a very powerful feature for its Swing designer, but too bad the default swing designer generates soucecode using javax.swing.GroupLayout and it’s only available at Java 6. I found this problem early this morning, somehow i design the Swing UI using Netbeans but i have to deploy my application in a Java 5 environment. Btw, im using Netbeans 6.9.

Below is the screenshot for Netbeans’ free design layout.

And this is the generated sourcecode, it works well with java 6.0

But when im using Java 5, it generates lots of errors

So, the workarouds are whether i change all the UI layout designs from GroupLayout to NullLayout, or find a way so GroupLayout is compatible with Java 5.

Because the second workaround is much promising, so i googled a while and found out that it’s actually not to difficult to make GroupLayout is compatible with Java 5. This is how i do it.

Right click, and choose Properties

And choose Swing Layout Extension Library.

Suddenly all the javax.swing.GroupLayout changed into org.jdesktop.layout.GroupLayout. And dont forget to include swing-layout*.jar, because org.jdesktop.layout.GroupLayout located in it.

See, it’s not that hard right? (H)

Google+

A Simple Swing and iBatis Integration Example

According to Wikipedia, iBATIS is a persistence framework which automates the mapping between SQL databases and objects in Java, .NET, and Ruby on Rails. In Java, the objects are POJOs (Plain Old Java Objects). The mappings are decoupled from the application logic by packaging the SQL statements in XML configuration files. The result is a significant reduction in the amount of code that a developer needs to access a relational database using lower level APIs like JDBC and ODBC.

Here, we are trying to create a simple java application using iBatis framework. Im using Netbeans as my IDE and MySql for my database. First of all, we create a simple “test” database, and “contoh” table consisting of two varchar fields.

CREATE DATABASE 'test'
USE 'test'

CREATE TABLE 'contoh' (
  'nama' varchar(30) NOT NULL,
  'alamat' varchar(100) DEFAULT NULL,
  PRIMARY KEY ('nama')
)

next step is creating a java bean for database mapping

package com.edw.bean;

public class Contoh {

    private String nama;
    private String alamat;

    public String getAlamat() {
        return alamat;
    }

    public void setAlamat(String alamat) {
        this.alamat = alamat;
    }

    public String getNama() {
        return nama;
    }

    public void setNama(String nama) {
        this.nama = nama;
    }

}

and an xml mapping for database queries, i name it contoh.xml, and place it in

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE sqlMap PUBLIC "-//ibatis.apache.org//DTD SQL Map 2.0//EN" "http://ibatis.apache.org/dtd/sql-map-2.dtd" >
<sqlMap namespace="contoh" >

  <insert id="insertContoh" parameterClass="com.edw.bean.Contoh" >
    insert into contoh (nama, alamat)
    values (#nama:VARCHAR#, #alamat:VARCHAR#)
  </insert>
</sqlMap>

and one xml file to contain all of our basic database connection and configuration files

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE sqlMapConfig
PUBLIC "-//ibatis.apache.org//DTD SQL Map Config 2.0//EN"
"http://ibatis.apache.org/dtd/sql-map-config-2.dtd">

<sqlMapConfig>
    <settings
        useStatementNamespaces="true"
        lazyLoadingEnabled="true"
        enhancementEnabled="true"
        maxSessions="20"
        />

    <transactionManager type="JDBC" commitRequired="false">
        <dataSource type="SIMPLE">

            <property name="SetAutoCommitAllowed" value="false"/>
            <property name="DefaultAutoCommit" value="false"/>

            <property name="JDBC.Driver" value="com.mysql.jdbc.Driver"/>
            <property name="JDBC.ConnectionURL" value="jdbc:mysql://localhost/test"/>
            <property name="JDBC.Username" value="root"/>
            <property name="JDBC.Password" value=""/>

        </dataSource>
    </transactionManager>


    <!-- dont forget to register your sql map configs -->
    <sqlMap resource="com/edw/sqlmap/contoh.xml"/>

</sqlMapConfig>

dont forget to register you xml queries here (line 28), or iBatis wont find it. And as you can see, at line 11, we can set our maximum session to database. 20 maxSessions means, there wont be more than 20 concurrent connection to database. Dont worry, iBatis can also connect to your connection pooling or JNDI as Datasource.

next step is, we create a singleton java class, to load our iBatis configuration.

package com.edw.config;

import com.ibatis.common.resources.Resources;
import com.ibatis.sqlmap.client.SqlMapClient;
import com.ibatis.sqlmap.client.SqlMapClientBuilder;

import java.io.IOException;
import java.io.Reader;

public class SqlMapConfig {

    protected static final SqlMapClient sqlMap;

    static {
        try {
            Reader reader = Resources.getResourceAsReader("com/edw/sqlmap/sqlmapconfig.xml");
            sqlMap = SqlMapClientBuilder.buildSqlMapClient(reader);
        } catch (IOException e) {
            throw new RuntimeException("Fatal Error, ga dapet sqlmapconfignya.  Cause: " + e, e);
        } catch (Exception e){
            throw new RuntimeException("Fatal Error.  Cause: " + e, e);
        }
    }

    public static SqlMapClient getSqlMap() {
        return sqlMap;
    }
}

and after that, we create our UI Class. Im using a simple Swing class for example.

package com.edw.ui;

import com.edw.bean.Contoh;
import com.edw.config.SqlMapConfig;
import com.ibatis.sqlmap.client.SqlMapClient;
import java.awt.Container;
import java.awt.GridLayout;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.sql.SQLException;
import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JTextField;

public class FrameUtama extends JFrame implements ActionListener {

    private JTextField txtNama = new JTextField();
    private JTextField txtAlamat = new JTextField();
    private JButton cmdButton = new JButton("Save");

    public FrameUtama(){
        setLayout(new GridLayout(3, 3));
        Container con = this.getContentPane();
        con.add(new JLabel("nama : "));
        con.add(txtNama);
        con.add(new JLabel("Alamat : "));
        con.add(txtAlamat);
        con.add(cmdButton);

        cmdButton.addActionListener(this);
    }

    public void actionPerformed(ActionEvent e) {

    }

    public static void main(String[] edw) {
        FrameUtama frameUtama = new FrameUtama();
        frameUtama.setVisible(true);
        frameUtama.setSize(300,150);
        frameUtama.setLocationRelativeTo(null);
    }

}

and we just put this simple snippet code to connect our Swing UI code to database via iBatis.

 public void actionPerformed(ActionEvent e) {
        if(e.getSource() == cmdButton){
            Contoh contoh = new Contoh();
            contoh.setNama(txtNama.getText());
            contoh.setAlamat(txtAlamat.getText());

            SqlMapClient sqlMapClient = SqlMapConfig.getSqlMap();
            try {
                sqlMapClient.insert("contoh.insertContoh", contoh);
                System.out.println("Success");
            } catch (SQLException ex) {
                ex.printStackTrace();
            }
        }
    }

well, this is the project file structure in NB 6.8.
my ibatis project structure

and this is the UI layout
Application GUI

this is what happen if we submit a data
successfully submit data

the data we submitted is in the database
mysql data

dont forget to download ibatis jars here, im using iBatis 2.3.4 currently.
Thanks.
